Kia EV9 A/C system: the parts and what each one does
Reviewed by G.M. Manigandan, founder and lead technician · Last reviewed
The EV9 is a three-row electric SUV. Its A/C compressor is driven by the high-voltage battery, and the cabin it cools is a large one. Cooling problems can start in any of the parts below, which is why we test before we recommend one.

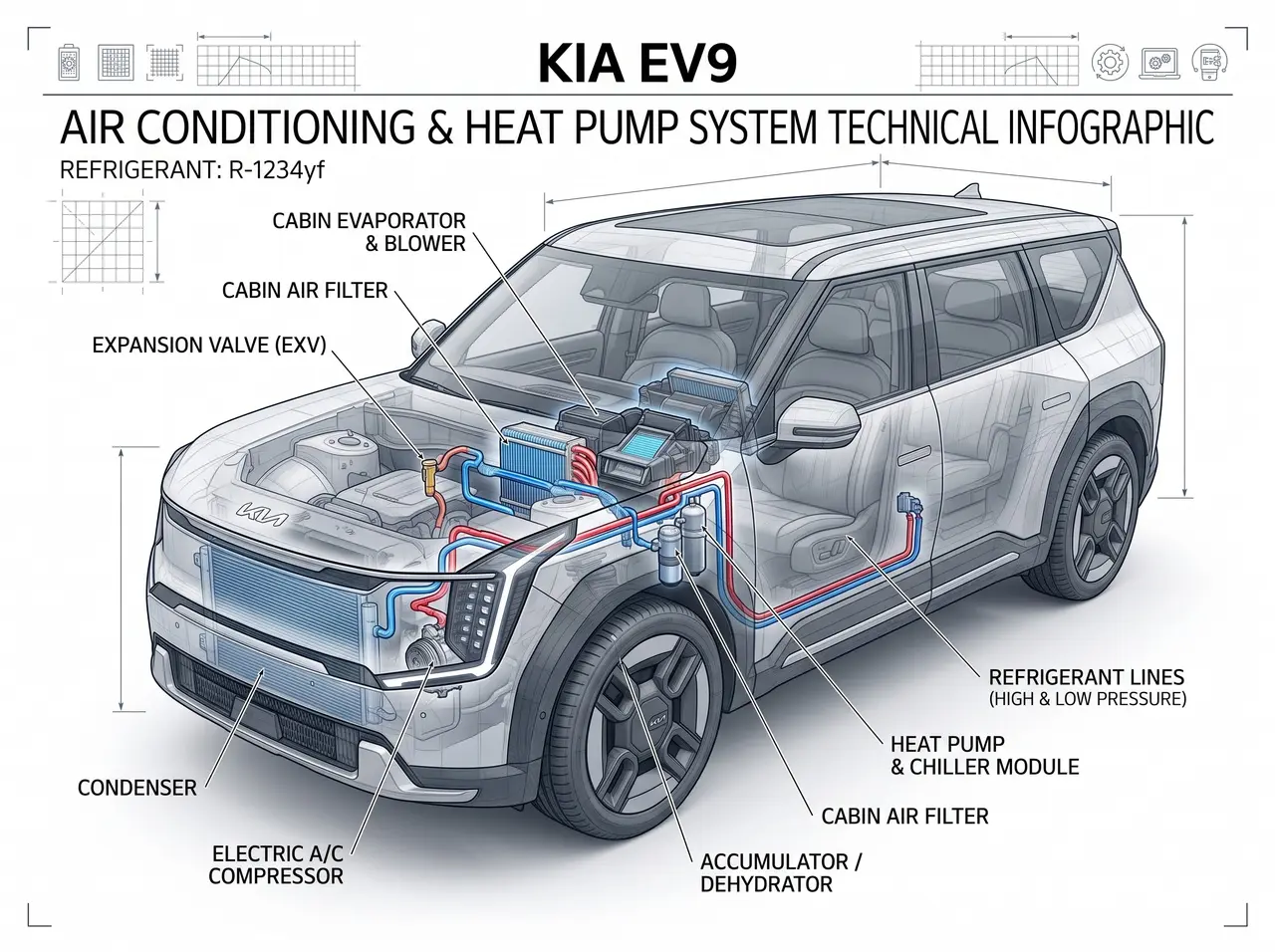

The parts in the diagram
Electric compressor
Run from the high-voltage battery rather than an engine belt, so it works with the car parked and switched on. It is not a part to open until the high-voltage system has been made safe.
Condenser
Sits at the front of the car, ahead of the radiator. Road dust, bent fins or a weak cooling fan stop it shedding heat, and the usual sign is cooling that fades in traffic and returns on an open road.
Expansion valve
Meters liquid refrigerant into the evaporator. A valve that sticks gives cooling that comes and goes.
Evaporator
The cooling coil behind the dashboard. It is where a musty smell starts, where a blocked drain puts water on the passenger floor, and one of the harder places to find a leak.
Blower and cabin filter
The blower pushes cabin air across the evaporator, through the cabin filter. A filter loaded with dust gives weak airflow that is easy to mistake for low gas.
Refrigerant lines
A high-pressure line carries refrigerant out, a low-pressure line returns it to the compressor. Joints, service ports and rubbed hoses are where slow leaks are usually found.
Battery cooling
On many electric cars the same refrigerant circuit also helps manage battery temperature, so an A/C fault can matter for more than cabin comfort.
Where cooling faults usually start
We work through the loop in the same order on every car:
- Airflow. Cabin filter, blower speeds and the temperature at the centre vent.
- Heat rejection. Condenser fins and cooling-fan operation with the car standing still.
- Pressures. High-side and low-side gauge readings, written down.
- Leaks. A leak check before any refrigerant goes in, because a system that is low has usually leaked.
- Controls. Compressor operation, sensors and the climate-control inputs.
The symptom alone does not name the part. On an electric car, tell us whether the cooling changes while the car is charging.
What this page does not tell you
The picture is an illustration, not Kia's engineering drawing. Part positions are approximate, and pipe routing, the refrigerant type and the compressor design differ between versions and model years. The refrigerant your car takes is printed on the label under the bonnet, and that label is what we go by.
Nothing on this page is a diagnosis. That needs the car, gauges and a few minutes of testing.
