Mahindra Thar A/C system: the parts and what each one does
Reviewed by G.M. Manigandan, founder and lead technician · Last reviewed
The Thar is a short-cabin 4x4 with one cooling coil behind the dashboard. Off-road dust and mud reach the condenser at the front sooner than on a road car. Cooling problems can start in any of the parts below, which is why we test before we recommend one.

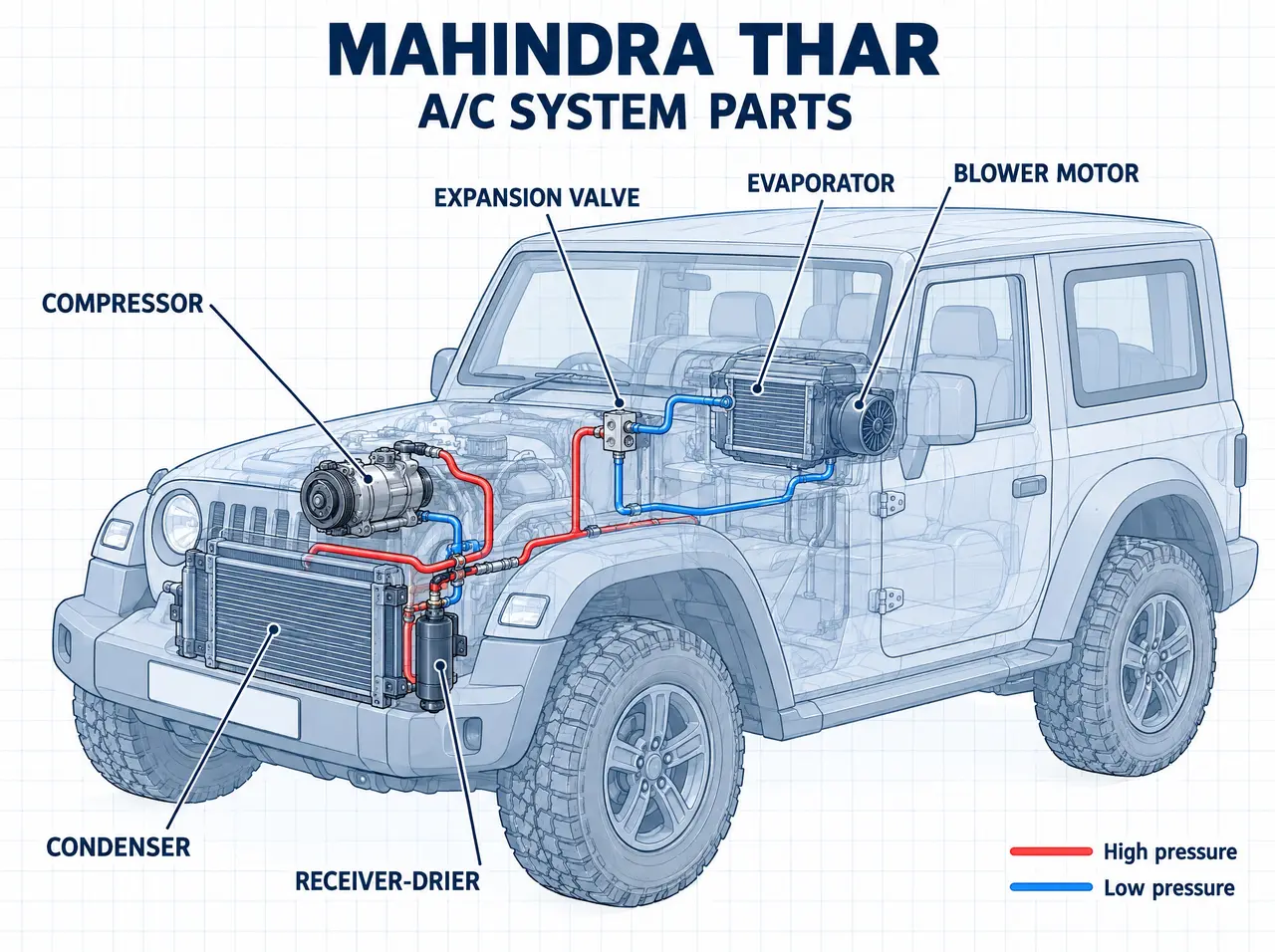

The parts in the diagram
Compressor
Driven by the engine belt. It is the most expensive part in the loop and the one most often blamed for a fault that sits somewhere cheaper.
Condenser
Sits at the front of the car, ahead of the radiator. Road dust, bent fins or a weak cooling fan stop it shedding heat, and the usual sign is cooling that fades in traffic and returns on an open road.
Receiver-drier
Holds a drying agent that takes moisture out of the refrigerant. It is replaced when the system has been open to air for a repair.
Expansion valve
Meters liquid refrigerant into the evaporator. A valve that sticks gives cooling that comes and goes.
Evaporator
The cooling coil behind the dashboard. It is where a musty smell starts, where a blocked drain puts water on the passenger floor, and one of the harder places to find a leak.
Blower and cabin filter
The blower pushes cabin air across the evaporator, through the cabin filter. A filter loaded with dust gives weak airflow that is easy to mistake for low gas.
Refrigerant lines
A high-pressure line carries refrigerant out, a low-pressure line returns it to the compressor. Joints, service ports and rubbed hoses are where slow leaks are usually found.
Where cooling faults usually start
We work through the loop in the same order on every car:
- Airflow. Cabin filter, blower speeds and the temperature at the centre vent.
- Heat rejection. Condenser fins and cooling-fan operation with the car standing still.
- Pressures. High-side and low-side gauge readings, written down.
- Leaks. A leak check before any refrigerant goes in, because a system that is low has usually leaked.
- Controls. Compressor operation, sensors and the climate-control inputs.
The symptom alone does not name the part. Tell us whether it is worse in traffic, in the afternoon or at one fan speed. It shortens the testing.
What this page does not tell you
The picture is an illustration, not Mahindra's engineering drawing. Part positions are approximate, and pipe routing, the refrigerant type and the compressor design differ between versions and model years. The refrigerant your car takes is printed on the label under the bonnet, and that label is what we go by.
Nothing on this page is a diagnosis. That needs the car, gauges and a few minutes of testing.
