Maruti charging warning light: alternator or something cheaper?
Reviewed by G.M. Manigandan, founder and lead technician · Last reviewed
The battery-shaped warning light on a Maruti's dashboard means the charging system is not keeping up, not necessarily that the alternator is failing. A loose belt, a corroded terminal, or a bad earth wire triggers the same light as a worn alternator, and the cheaper faults are worth ruling out first.
What the warning light actually measures
The charging warning light on a Maruti activates when the voltage at the alternator's charge-warning terminal drops below a threshold set by the voltage regulator, usually somewhere around 12.6 V with the engine running, though the exact trip point varies by variant. The light does not tell you why the voltage is low. It tells you only that something in the charging circuit is not working as expected.
That distinction matters. A corroded battery terminal adds resistance to the same circuit. A worn drive belt slips under load and lets the alternator turn slower than it should. A failed earth strap means the circuit cannot complete even if the alternator itself is fine. All three cause the same warning light, and all three are cheaper to fix than a replacement alternator.
The checks we run, in order

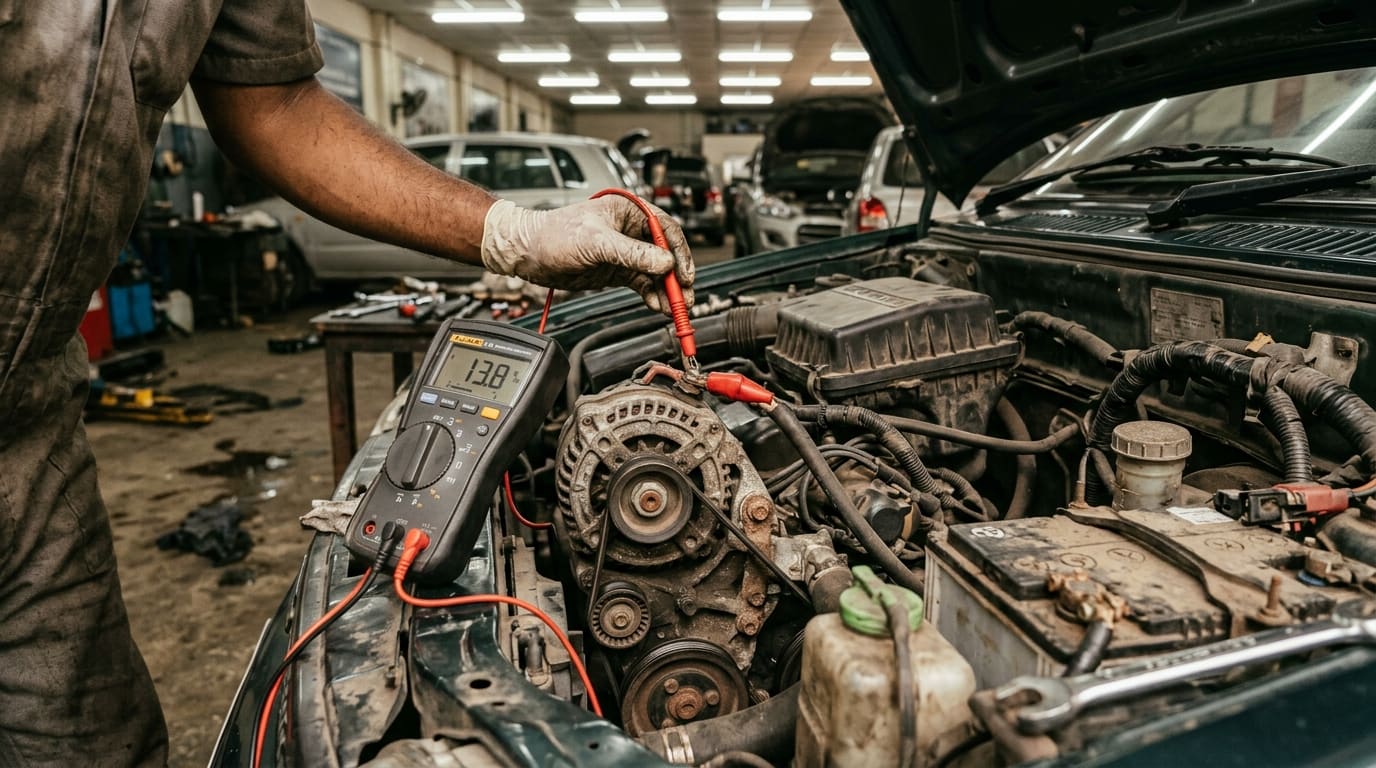

1. Voltage at the battery, engine running
This is the first number. With the engine running and the AC off, a healthy system reads 13.8–14.4 V across the battery terminals. A reading under 13 V with the engine running confirms the alternator is not charging normally. A reading above 14.8 V for a sustained period suggests an overcharging fault, a different problem but worth catching early on a Maruti, where the voltage regulator is inside the alternator body on most models.
2. Drive belt condition and tension
The alternator is driven by the drive belt, and on most Maruti hatchbacks this is a multi-groove serpentine belt shared with the power-steering pump and sometimes the AC compressor. A belt that is stretched, cracked, or has a glazed contact surface slips under load, the alternator spins too slowly to charge at the correct voltage. Slipping shows as a brief improvement in voltage when engine speed rises quickly and a drop back as it settles. Belt replacement is the lowest-cost fix in this chain.
3. Battery terminal connections and the main earth
Resistance at a corroded terminal drops the voltage the rest of the car sees, even if the alternator is producing the right output. The main negative earth strap connects the battery to the gearbox casing and the body, and a hairline crack or a loose clamp is hard to spot visually. We measure voltage drop across the earth strap under load, not just look at the connection.
4. Alternator output under load
Once the belt and connections are confirmed sound, we put a load on the system, headlights on, AC running, and watch how the voltage holds. A healthy alternator holds above 13.5 V with a full electrical load. One whose stator windings or diodes are degrading shows a voltage that drops under load and rises again when accessories are switched off.
5. Battery condition
A battery that can no longer hold a charge draws more from the alternator than the alternator can deliver, and the warning light comes on as a result. We do a load test on the battery separately. A battery that reads 12.6 V at rest but collapses under load needs replacing before an alternator verdict is made, putting a new alternator on a failing battery often damages the new unit.
When the alternator itself is the problem
After the belt, terminals, earth and battery are confirmed sound, a persistent low-voltage reading with the engine running and a full field signal at the alternator's regulator terminal points at the alternator stator or diode pack. Maruti hatchbacks: Swift, WagonR, Baleno, Dzire, Ertiga, typically use compact alternators where the regulator is an integrated module. On these, we test the diode rectifier with the alternator off the car before condemning the whole unit.
Repair or replacement depends on age, mileage and what the diode test shows. Some units are worth rebuilding with new brush sets and a replacement regulator; others are better replaced outright. We quote after the test, not before it.
What the diagnosis costs
The free 30-point A/C and electrical checkup is ₹0, takes about fifteen minutes and includes a written report. It covers the voltage test, belt inspection and battery load test we described above. That is usually enough to point at the right repair before anything is opened.
Belt replacement, terminal cleaning and earth strap work are priced after the inspection. Alternator replacement is diagnosed and quoted, we do not publish a price because the difference between a belt tensioner shim job and a replacement alternator is too wide for a number to be honest.
